HDIPPS10
10 Split Power Supply
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.
FOR HD-1600 SERIES MODULATOR

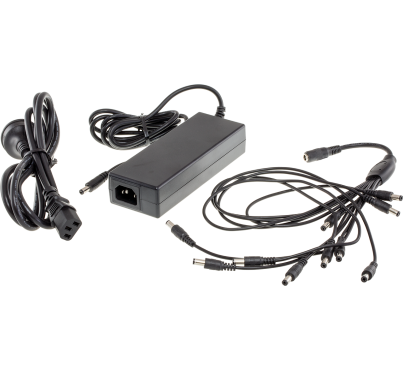

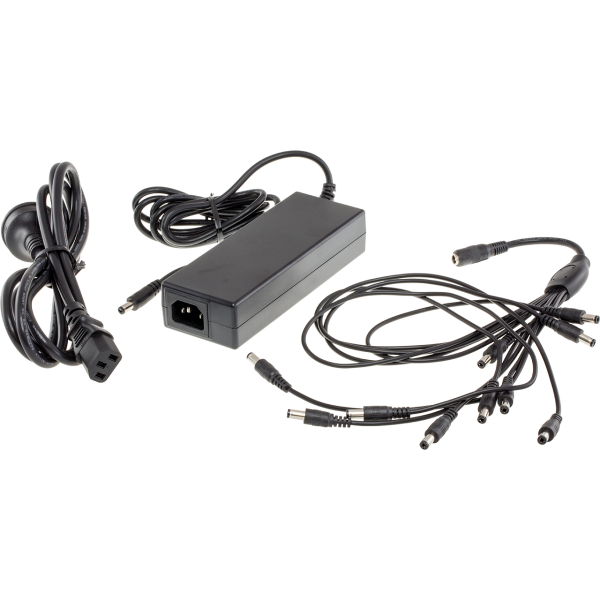

Power supply with 10 plugs to power up to 10 resi-linx modulator devices at once.
Can be used on HD-1600/1600L/1603/RL-DM1102M modulators.
Perfect to be used with ZC10pk.
Specifications
|
Input Voltage |
100-240VAC |
|
Input Current |
≤1.5 Arms ar 100 to 240 VAC input |
|
Output Capacity |
96.00W max |
|
Output Voltage And Current |
8A @ + 12.00 VDC |
|
Frenquency |
50Hz-60Hz |
|
Hold Up Time |
10ms min @ 115VAC input 20ms min @ 230VAC input |
|
Turn On Delay Time |
3s max@ 100 VAC to 20VAC input with Max.load output |
|
Operating Temperature |
-40°C-45°C |
|
Storage Temperature |
-20°C-80°C |
|
Operating Humidity |
10%-90% RH(Condensation: not required) |
|
Storage Humidity |
5%-95% RH(Condensation: not required) |
