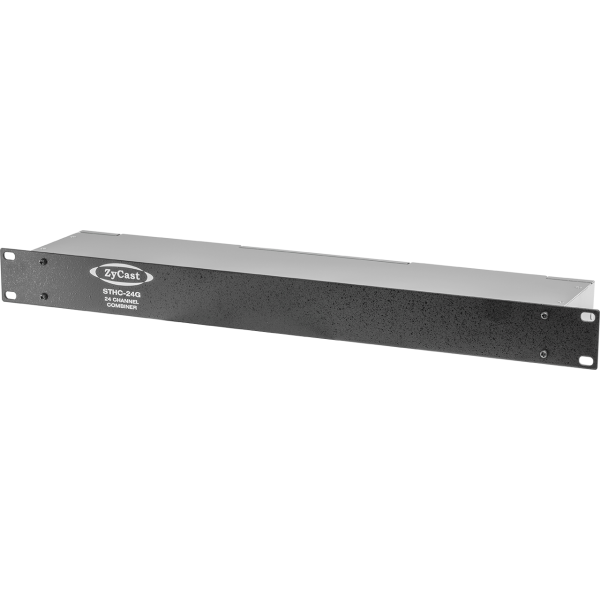

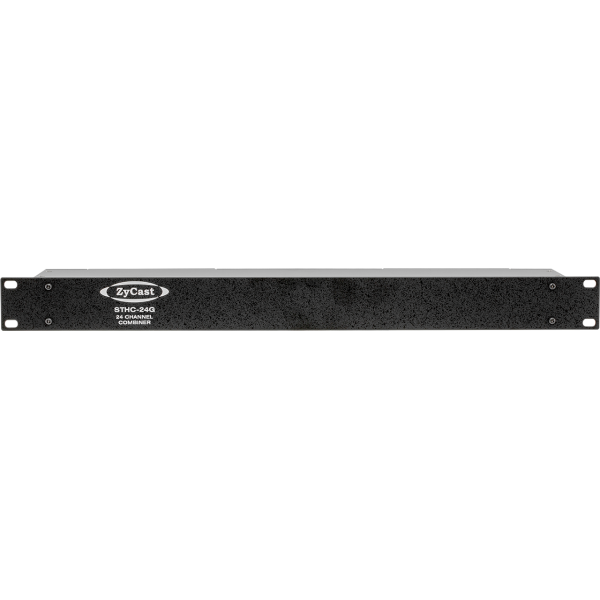

STHC24G
24 PORT PASSIVE COMBINER
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

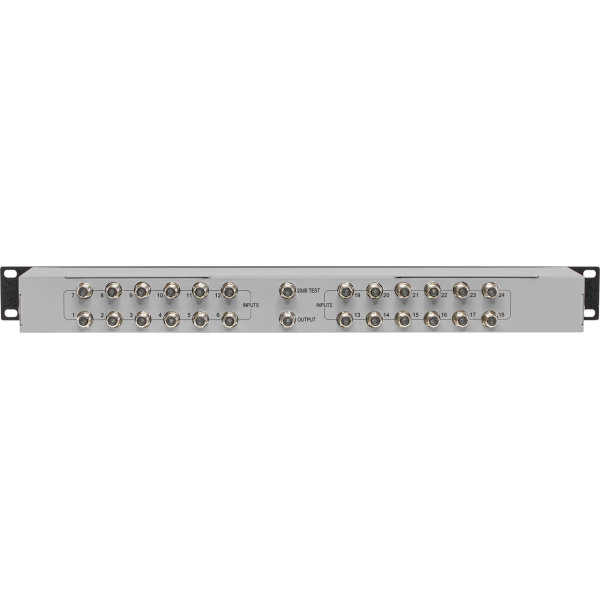

COMBINES 24 INPUTS TO 1 OUTPUT
24 channel combiner takes 24 RF inputs and combines them into 1 output.
Features one 20dB test port.
Specifications
|
Bandwidth |
40-1000MHz |
|
Input Number |
24 ports |
|
Impedance |
75 Ohms |
|
Insertion Loss |
19 dB typical @40-450 MHz 21dB typical @450-1000MHz |
|
Input Return Loss |
16 dB typical @40-450 MHz 16 dB typical @450-1000MHz |
|
Output Return Loss |
16 dB typical @40-450 MHz 16 dB typical @450-1000 MHz |
|
Port-to-pot Isolation Adjacent Ports |
30 dB typical |
|
Port-to-port Isolation Opposing Ports |
40 dB typical |
|
Test Port |
-20 dB |
|
Connectors |
F type |
|
Dimension and Weight |
482.6 x 44.45x 76.2 mm (WxHxD). 1.08 kg |
