HD-IP8000

HDIP8000 - 8 INPUT HD IP STREAMING SERVER

Where's the price?

This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account!
resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

ZyCast's HDIP-8000 8-Input HD IP Streaming Server allows you to stream up to 8 HD/SD video sources over an IP Network to an unlimited number of PCs or TVs.

8 INPUT HD IP STREAMING SERVER

ZyCast's HDIP-8000 8-Input HD IP Streaming Server allows you to stream up to 8 HD/SD video sources over an IP Network to an unlimited number of PCs or TVs using a set top box within the IP Network. The IP Streaming Server accepts 8 HDMI or 8 mini-DIN (Component/Composite) video inputs and the unit is designed to deliver a rich HD/SD Streaming experience for users deploying MPEG-2 or H.264 standards. The HDIP-8000 HD Streaming server enables high-definition streaming with resolutions up to 1080p, providing the highest quality viewing experience for your customer.
Each of the 8-encoders is MPEG-2 or H.264 switchable and supports UDP/RTP Multicast or Unicast stream types. The 1RU high design saves space and is easily controlled via a web UI for rapid deployment.

  • High resolution up to1080p
  • MPEG-2 or H.264 video (selectable) output
  • 8-input HDMI or (Component / Composite) via DIN cable
  • Variable bitrate control
  • UDP/RTP unicast
  • Video bitrate control
  • EAS Functionality
  • 8 SPTS Output Streams
  • MPEG-1 Layer II, AAC, AC-3 passthrough
  • Individual IP stream control
  • Closed captioning support
  • Rack mountable 1RU height

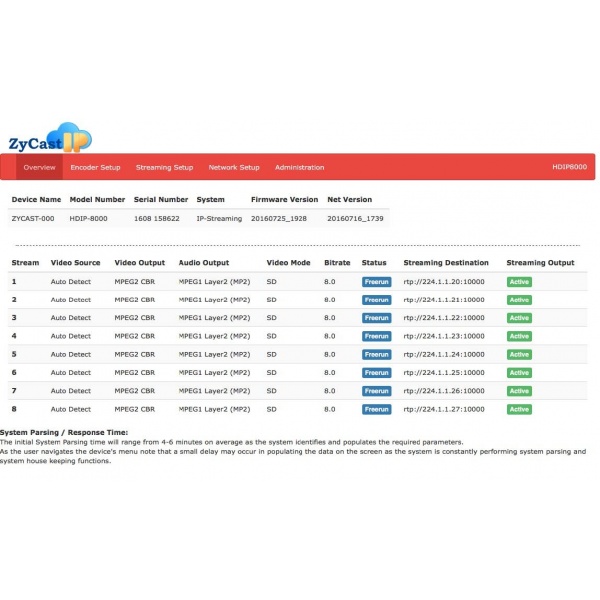

  • Intuitive GUI for Rapid Deployment

Specifications

VIDEO/AUDIO INPUTS

HDMI 8x 1.4V

DIN 8x (Component / Composite) via mini-DIN

Audio Input Embedded PCM / Dolby Digital PassThrough / via DIN (Analog L/R)

VIDEO ENCODER

Resolution 1080p (H.264 Only) | 1080i | 720p | 480p | 576p | 576i | 480i

VIDEO / AUDIO COMPRESSION

Video Codecs MPEG-2 MPEG-2, MP@HL

Video Codecs H.264 (HD) > 1080p30, HP@Level 4.2 / =1080p30, HP@Level 4 >720p30, HP@

Level 3.2 / =720p30, HP@Level 3.1

Video Codecs H.264 (SD) Frame Rate > 30, MP@Level 3.1 / =30, Level 3

VIDEO BITRATE

MPEG-2 SD: 1 to 8Mbps / HD: 10 to 15.7Mbps

H.264 SD: 1 to 4Mbps / HD: 4 to 8Mbps

AUDIO ENCODER

Audio Compression MPEG-1 Layer II, AAC, Dolby PassThrough

OUTPUT

Connector Type 1RJ-45, GbE

Streaming Protocols UDP / RTP Unicast / Multicast

Stream Types 8 SPTS

Stream Control Enable / Disable Control per Stream

EAS SUPPORT

Connection Dry Contact

Audio/Video Input Composite (Video / Audio L/R via Mini DIN to 6x RCA Cable

GENERAL

Local Monitoring LED System Indicators (Power & 8 Encoder Status LEDs)

GUI Supported IE9, FireFox, Chrome, Safari

Password Protected GUI: Changeable

Fan Cooled Internal

Power Supply 12VDC 6.66 Amp

Consumption 50W Typical, 52W Max

Dimension 438mm x 276mm x 43.2mm / 1RU 19” EIA
