RLBV240A
RL-BV240A
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

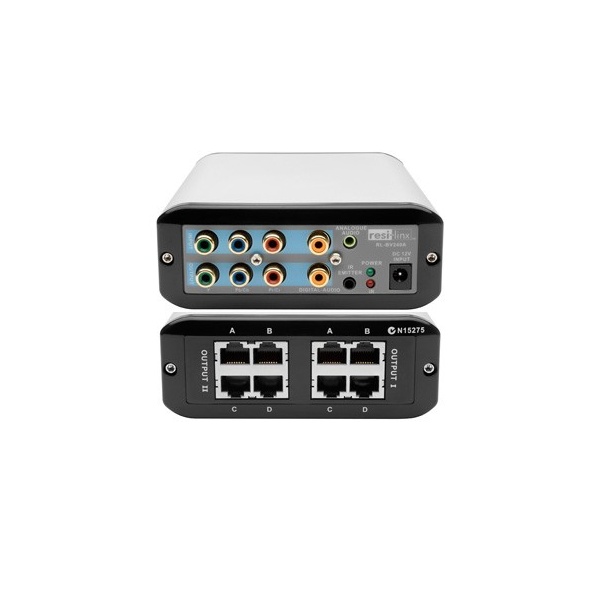

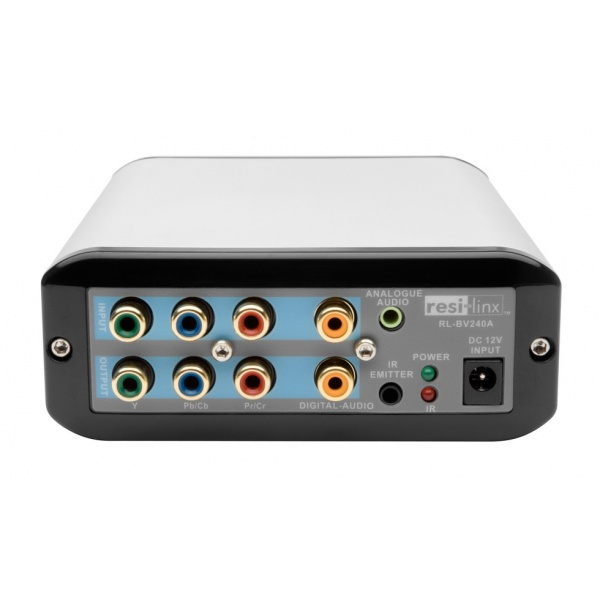

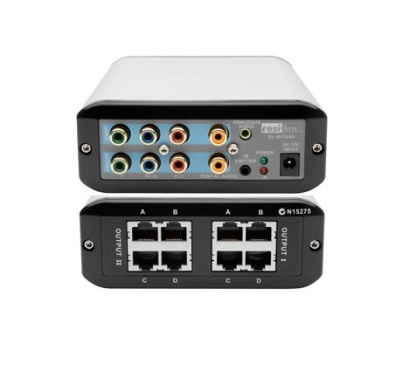

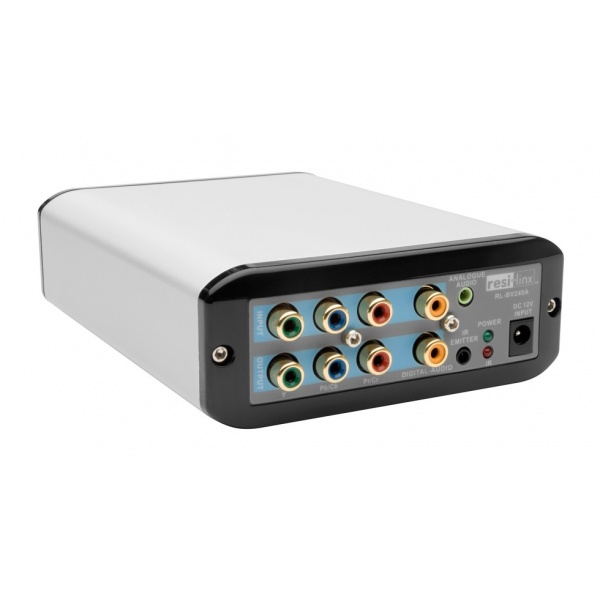

Component video and digital/analogue audio balun transmitter with IR control. Allows the transmission of component video and digital/analogue audio signals to up to 4 TV's using 2 x UTP cable.
Features
- Component video and digital/analogue audio balun transmitter with IR control
- Allows the transmission of component video and digital/analogue audio signals to up to 4 TV’s using 4 pair twisted cable
- Built-in IR control with addition of RL-IR700/800 Emitter
- resi-linx® IR control system is plasma friendly and Foxtel/iQ compatible
- Features additional connectivity of Loop Through terminals to maintain AV quality signal at source
- Includes Switch Mode power supply
- For use with: RL-BV250B Receiver
- Connections: 3 x RCA (2 sets), 8 x RJ45, 1 x IR Emitter, 1 x Analogue Audio
- Configuration: 1 : 4
- Loop Through Capability: Yes
- IR Capability: Yes
- Power: 12V DC 500mA Switch Mode
- Maximum Cable Length: Up to 100m
- Maximum Video Input: 1.2V P-P
- Return loss: >15dB to 1,000 MHz
- Common mode rejection: >40dB @ 1,000MHz
