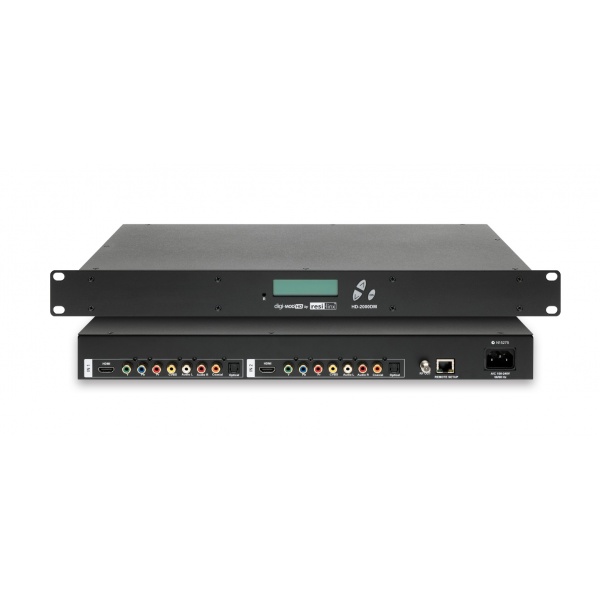

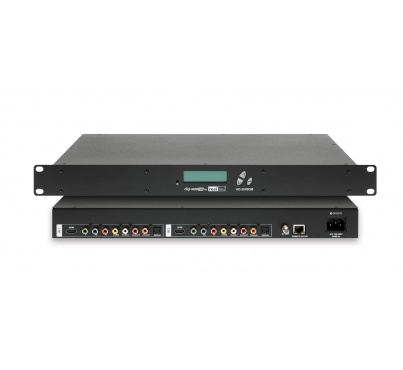

HD-2002DM - Professional Dual Input High Definition DVB-T MPEG-2/4 Digital Modulator

Where's the price?

This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account!
resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

The HD-2002DM is a Dual Input High Definition DVB-T Professional Commercial Modulator. Dual mode distribution with both MPEG-2 / AVC (MPEG-4) distribution available in the one product - ensuring the product is compatible with all HD TV's. Up to 1080P HD Distribution: 576i / 720P / 1080i / 1080P(AVC only). Auto-sensing Input between HDMI / Component / CVBS.


  • Dual Input High Definition DVB-T Modulator that converts HD video and audio signals to digital COFDM DVB-T Channel
  • Dual Mode - MPEG-2 & AVC (MPEG-4) Encoding
  • Distributes 576i / 720P / 1080i / 1080P picture quality (1080P only available on AVC)
  • Programmable Channel, Network Names and LCN

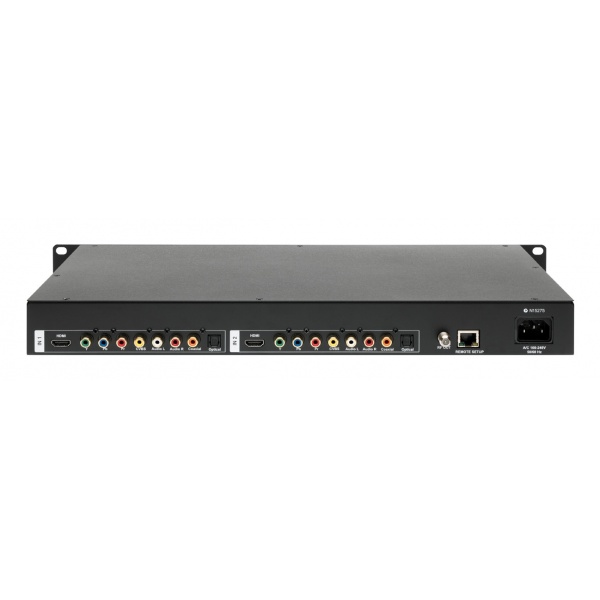

  • HDMI, Component, CVBS, Analogue Audio, Digital Coaxial/Optical inputs
  • Full function front LCD display for adjustments
  • 2K/8K Carriers
  • Adjustable VHF / UHF Output (6-69)
  • Adjustable Attenuation (95dB launch)
  • Desk, Wall and Rack Mountable
  • Video Input:  HDMI / Component / CVBS
  • Audio Input:  HDMI / Analogue Stereo / Digital Coaxial / Optical
  • Resolutions Supported:  576i / 720P / 1080i / 1080P
  • Output Channels:  6-69
  • Output Connector:  F type
  • Output Level:  95dBuV
  • Output Level Adjustment:  20 dB typ.
  • Number of Inputs:  2
  • Video Resolution:  MPEG - 2 / AVC (MPEG -4)
