RLRF210
RL-RF210CS - Flat IR Target for use in the resi-linx ® Range of RF IR Video Distribution System
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

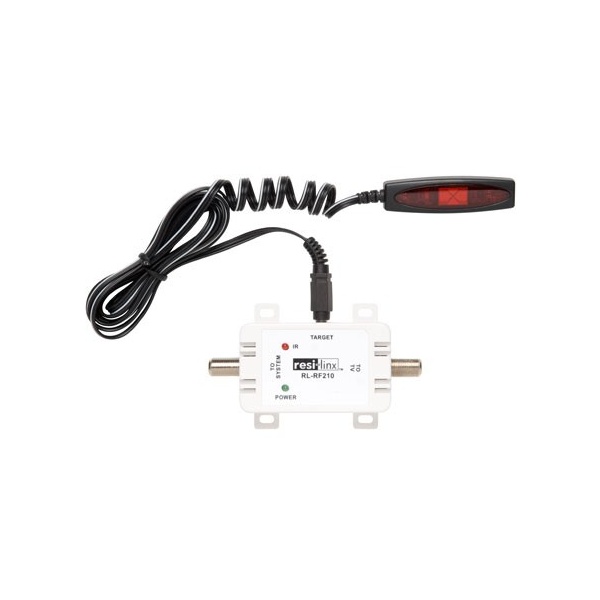

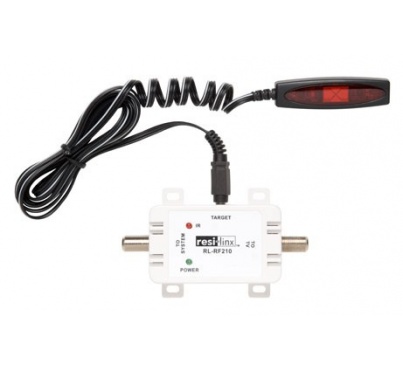

The resi-linx ® RL-CS210 is a sleek and unobtrusive "Foxtel Compatible" Flat IR Target for use in the resi-linx ® range of RF IR Video Distribution system. The target receives IR commands from remote controls and sends the signal through the resi-linx ® RL-RF380 Video Hub and Emitters to control the AV device at a remote location.
Features
- Sleek unobtrusive Flat IR Target for use with Vcomm’s RF IR Video Distribution System with IR Modulator / Video Hub emitters
- Plasma / LCD friendly, and Pay TV compatible
- Target plugs into compact in-line coaxial connector box using 3.5mm mini-jack
- Built-in LED to show acknowledgement of IR commands
- Receives IR commands from remote controls and send the signals through the Video Hub and emitters to control the AV device at a remote location
- Light-weight Connector Box has mounting brackets for ease of installation
- To facilitate placement, adhesive backing is included for both Target and Connector Box
- Flexible flat cord allows for ease of placement of target
- Powered remotely by modulator (both connector box & target)
- Rejects interference from plasma displays that enters the IR signal line
- Rejects interference from direct sunlight and fluorescent tube lights for accurate IR signal reception
- Length: Connector Box (70mm) / Target (57mm)
- Width: Connector Box (40mm) / Target (23mm)
- Height: Connector Box (13mm) / Target (8mm)
- Cable Requirement: Coaxial
- Max. Target Reception Distance: Up to 6m
- Output Connector: F type
- Operating Voltage: 5V
- IR Frequency: 30 - 100 KHz
- RF Frequency: 50 MHz ~ 900 MHz
