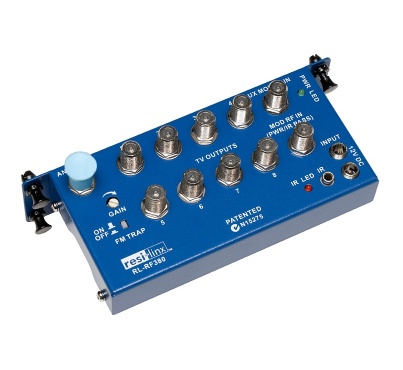

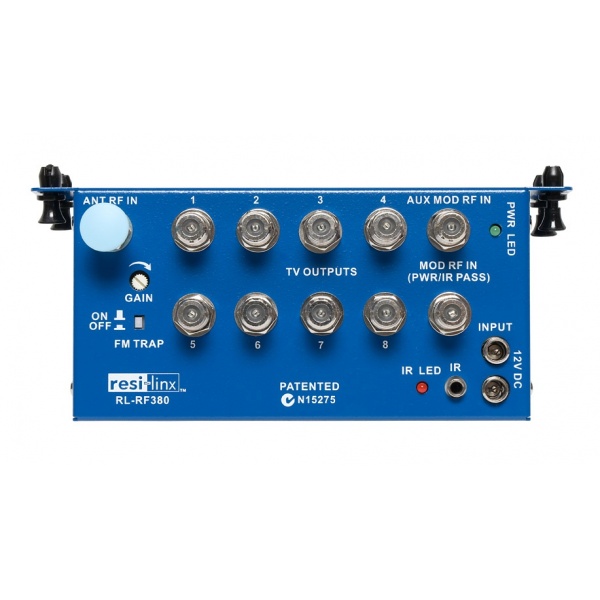

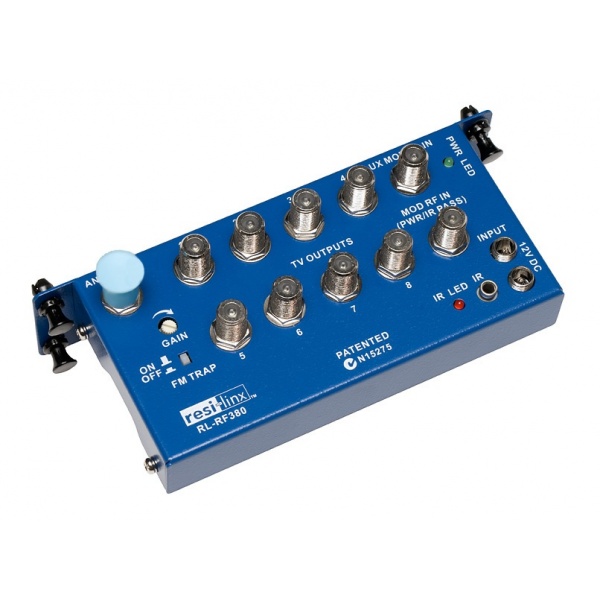

RL-RF380 RF Video Distribution Unit with IR control

Where's the price?

This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account!
resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

The RL-RF380's patented design is for whole-house video distribution with IR control. The splitters have reverse path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations. The RL-RF380/CS-VDU38IR must be remotely powered by an IR Modulator when using the IR Control.


  • Active, low loss combiner and splitter with 3 inputs, 8 outputs
  • Includes gain control for Free To Air input to eliminate problems due to high/low signal strength. When combined with gain control on modulator, allows complete balancing of signals
  • FM trap On/Off switch to filter 88-108MHz signals from transferrring through to output ports to eliminate FM interference to TV reception
  • Designed for mounting into any Structured Cabling Enclosure
  • Length:  135mm
  • Width:  69mm
  • Weight:  405g
  • Depth:  22mm
  • Output Connection(s):  8
  • Input Connection(s):  3 (Modulator / ANT)
  • Power Input:  110-240V AC
  • Power Output:  12V DC - 1.5A Switch Mode
  • Power Output Connection:  1.8m Length with F-2.1mm Jack
  • Power Requirement:  12V DC Power Supply
  • Output Frequency Pass:  30KHz to 850MHz
  • Gain / Loss:  ANT +2dB / Modulator +3dB
  • Output Run Distance:  60 metres
  • Isolation (Modulator inputs to ANT):  -80dB
