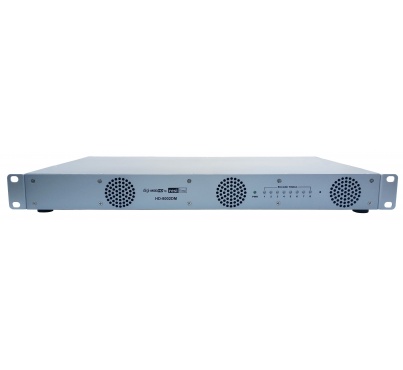

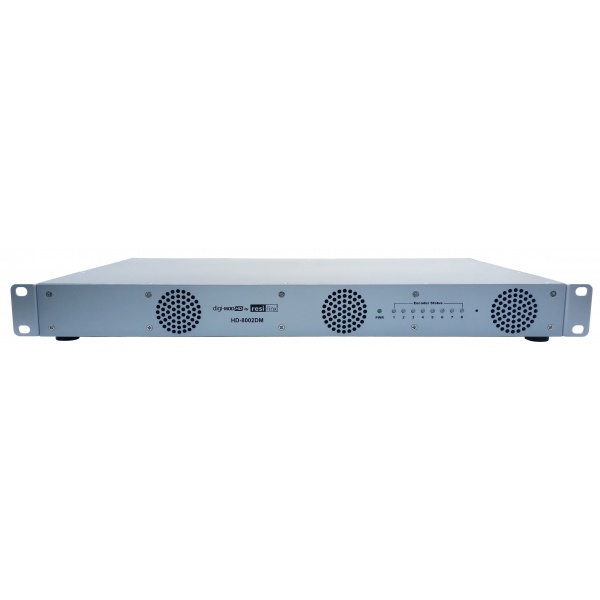

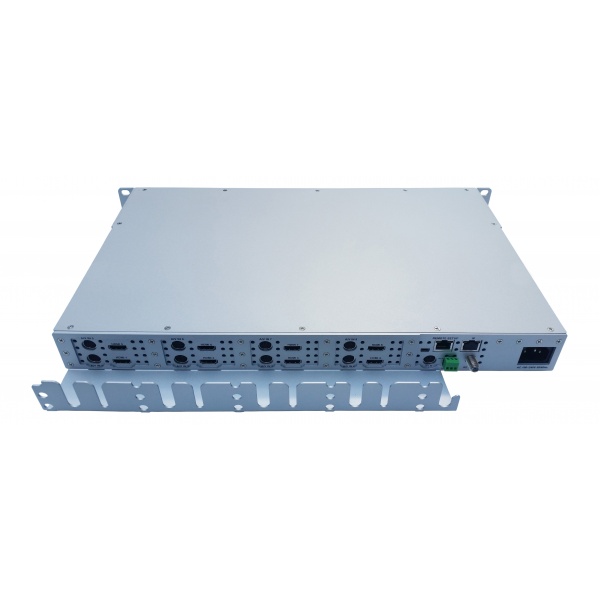

HD-8002DM - Professional Eight Input High Definition DVB-T MPEG-2/4 Digital Modulator

Where's the price?

This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account!
resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.


The HD-8002DM is an Eight Input High Definition DVB-T Professional Commercial Modulator. Dual mode DVB-T distribution with both MPEG-2 / H.264 (MPEG-4) encoding - ensuring the product is compatible with all HD TV's. Up to 1080P HD Distribution: 576i / 720P / 1080i / 1080P(H.264 only).


  • Professional/Commercial Grade
  • Eight Input High Definition DVB-T Encoder/Modulator
  • MPEG-2 / H.264 (MPEG-4) encoding - will work on all HD TV's!

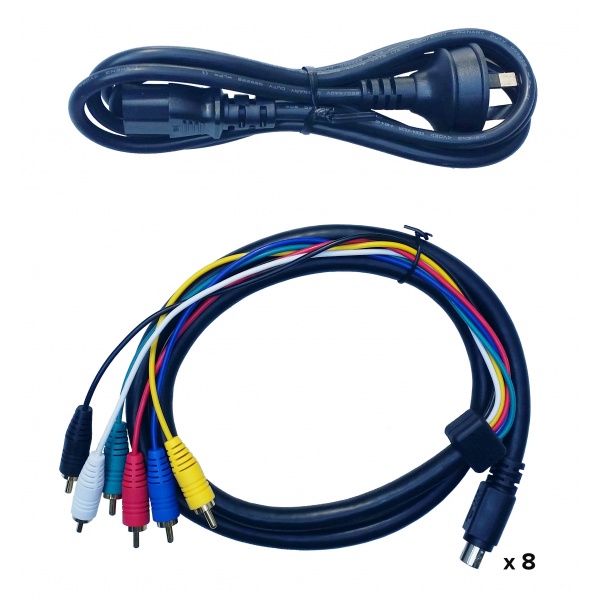

  • HDMI / Component / Composite Video Input/s options (Analogue Inputs via mini Din leads supplied)
  • Superior 43dB MER
  • 576i, 720P,1080i,1080P Resolution Distribution (1080P only on H.264/MPEG-4)
  • 1RU Rack mountable
  • Web Management via RJ45 Port
  • EAS Input
  • Internal Cooling System for Long Life Span
  • Distributes on any new or existing RF cable
  • Installed within minutes – plug n play technology
  • Ideal for all types of installation
  • Local 1300 Technical Support
  • Made for the Australian Market
  • Video Input:  HDMI / Component / CVBS
  • Audio Input:  HDMI / Analogue Stereo
  • Resolutions Supported:  576i / 720P / 1080i / 1080P
  • Output Channels:  6-69
  • Output Connector:  F type
  • Output Level:  98dBuV
  • Output Level Adjustment:  20 dB typ.
  • Number of Inputs:  8
  • Video Resolution:  MPEG - 2 / H.264 (MPEG -4)
