CT2IP8032

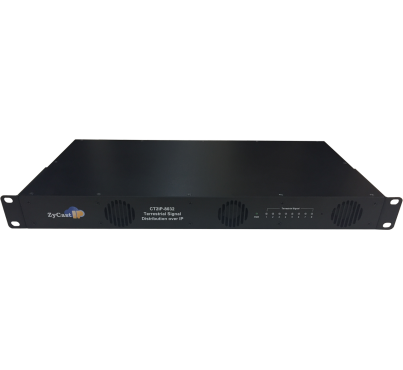

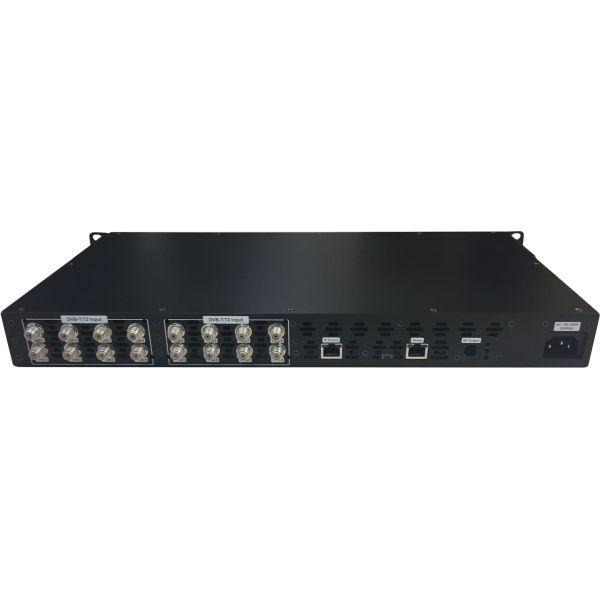

CT2IP8032 - 8 CHANNEL DVB-T TO IP ENCODER
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.
The CT2IP-8032 is a highly flexible system allowing integrators to quickly receive, convert, and distribute a variety of commercial terrestrial channels.
- 8 independent DVB-T Inputs up to 32 Independent IP Output Streams
- Full Parameter Settings
- Professional Programs Mapping
Specifications
|
Terrestrial |
Input |
F Female |
Number |
8 |
|
Loop Through |
8 |
|||
|
Frequency Range |
MHz |
VHF: 50.5 to 296.5 HF:306 to 858 |
||
|
Constellation |
DVB-T: QPSK, 16-QAM, 64 QAM DVB-T2: QPSK, 16 QAM, 64 QAM, 256 QAM |
|||
|
Bandwidth |
MHz |
6, 7, 8 (Factory Setting) |
||
|
Guard Interval |
DVB-T: ¼, …›, 1/16, 1/32 DVB-T2: ¼, 19/128, …›, 19/256, 1/16, 1/32, 1/128 |
|||
|
FEC Code Rate |
DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2: 1/4, 19/128, 1/8, 19/256, 1/16, 1/32, 1/128 |
|||
|
Transmission Mode |
DVB-T: 2k / 8k DVB-T2: 1k / 2k / 4k / 8k / 16k / 32k |
|||
|
IP |
Connector |
RJ45 100 / 1000 Mbps Ethernet |
Number |
1 |
|
Streaming Protocols |
Unicast UDP / RTP |
|||
|
Multicast UDP / RTP |
||||
|
SPTS Streaming |
Number of Stream |
32 |
||
|
Hardware |
RAM (DDR3) |
MB |
128 |
|
|
Memory |
NAND Flash |
MB |
N / A |
|
|
LED |
Power LED |
1 x Green (ON) |
||
|
Indicator LEDs |
8 x Green (Input Signal Locked ) OFF (Input Signal Unlocked ) |
|||
|
General |
Configuration |
RJ45 10 / 100 Mbps Ethernet |
Web GUI |
|
|
Control Protocols |
HTTP / Restful API |
|||
|
Upgrade via Web GUI |
TBD |
|||
|
Power |
Watt |
50 |
||
|
Input Line Voltage |
VAC / Hz |
95 ~ 264 / 50~60 |
||
|
Dimensions |
mm |
482.7w X 238d X 43.2h (Excluding Connectors) |
||
|
Weight |
kg |
4 |
||
