KTFX4

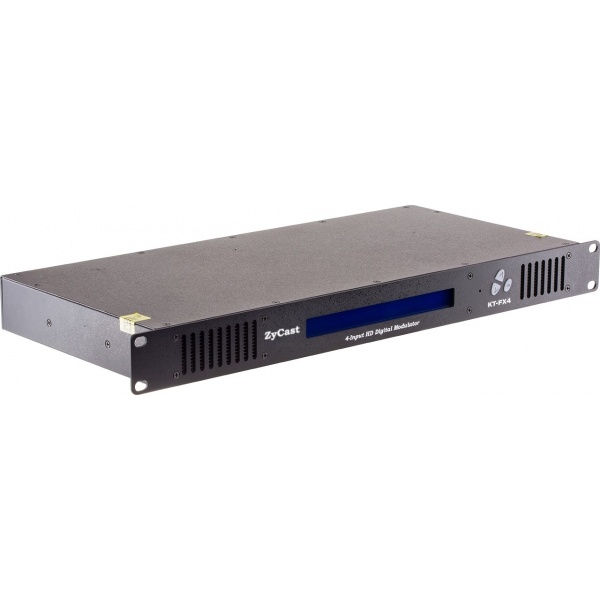

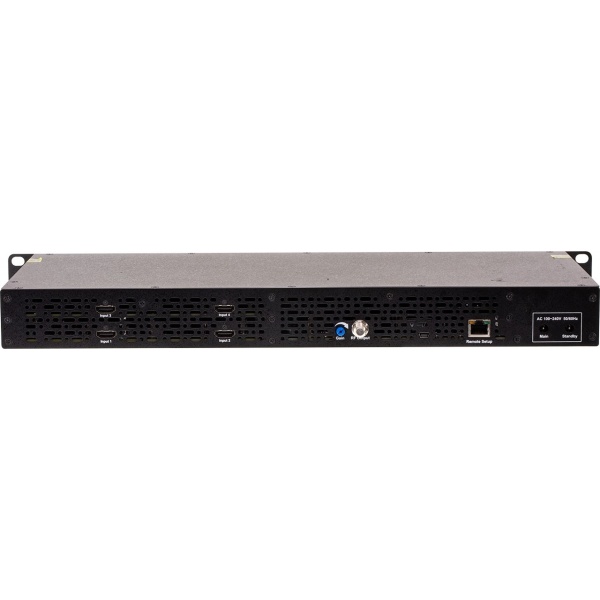

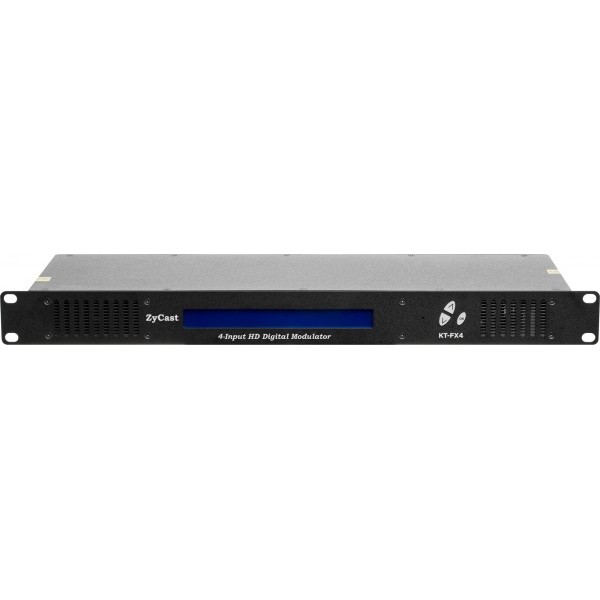

KT-FX4 - 4 INPUT FOXTEL HD MODULATOR
Where's the price?
This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account! resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.
Pre-programmed with a Foxtel-approved channel listing andwith an output level of 90dB and MER of >38dB, the KT-FX4 makes use of video compression via H.264 AVC (MPEG-4) and audio compression via MPEG Layer II/AAC to distribute four crystal-clear HD pictures over newor existing coaxial cable.
Programming of the KT-FX4 is done via a web GUI and front LCD panel. It uses a frequency range of 177.5MHz to 816.5MHz (6 to 69).
Specifications
|
KT-FX4 |
|||
|
Foxtel Approved Number |
F31061 |
||
|
Input |
|||
|
Number of inputs |
4 |
||
|
Video input |
HDMI |
||
|
Video input level |
0.7 - 1.4V (Peak to Peak) |
||
|
Video mode |
PAL |
||
|
Audio input |
Stereo |
||
|
Audio input level |
0.4 to 4.8V (Peak to Peak) |
||
|
Output |
|||
|
Frequency Range |
177.5 MHz to 816.5 MHz (6 to 69) |
||
|
HDMI loop through |
No |
||
|
Output level |
85dB |
||
|
MER |
>38dB |
||
|
Delayed audio |
|||
|
Delayed audio output |
No |
||
|
Delay |
|||
|
Connection type |
|||
|
Modulation |
|||
|
Video Resolution |
480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
||
|
Video compression |
H.264 AVC (MPEG-4) |
||
|
Audio compression |
MPEG Layer II / AAC |
||
|
Video bitrate SD |
1Mbps to 9Mbps (Default 5Mbps) |
||
|
Video bitrate HD |
12Mbps to 24Mbps (Default 24Mbps) |
||
|
LCN |
AU (APN) |
||
|
Carrier |
2K / 8K |
||
|
GI |
1/32 |
||
|
FEC |
7/8 |
||
|
Constellations |
16 QAM / 64 QAM |
||
|
Management / Programming |
|||
|
Front LCD |
Yes |
||
|
Web GUI |
Yes |
||
|
General |
|||
|
Power supply type |
External |
||
|
Power supply |
2 x 12VDC 4AMP |
||
|
Redundant PSU |
Yes |
||
|
Operating temperature |
0c to +45c |
||
|
Storage temperature |
-0c to +60c |
||
|
Dimensions |
482mm x 208mm x 44mm |
||
|
Weight |
2.5kg |
||
| Warranty | 3 years | ||
