AC1781

AC1781 - 2-WAY 4K HDMI SPLITTER

Where's the price?

This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account!
resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

Conveniently split up to two different HDMI equipped displays from your HDMI source. With 4K x 2K Ultra-High-Definition (UHD) support, there’s no reduction in picture quality so you can still enjoy the most your equipment has to offer.

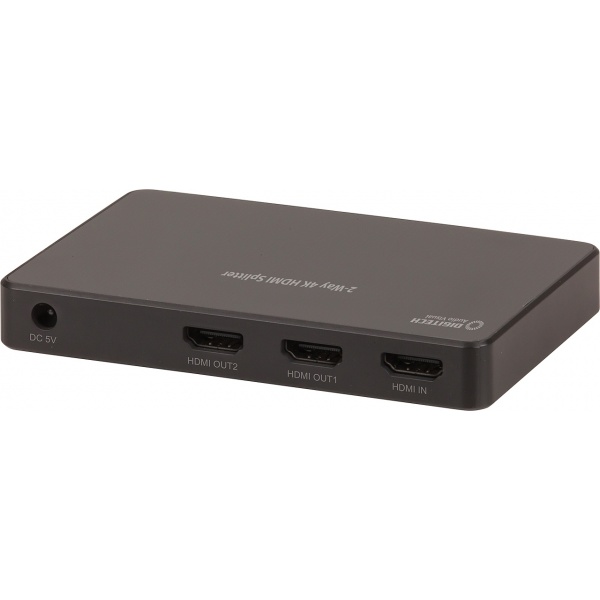

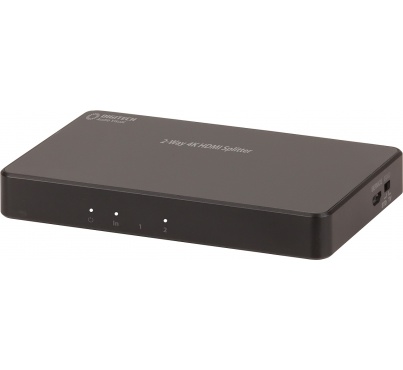

2-Way 4K HDMI Splitter

Includes audio support for up to 7.1 surround sound, and High-Dynamic-Range (HDR) for a wider range of lifelike colours and brightness. Includes mains power adaptor.

Features:
. Up to 4K x 2K Video Resolution
. High-Dynamic-Range (HDR) Video
. EDID Data Transmission
. HDCP, 3D & CEC Bypass

Specifications:
HDCP: 2.2, 1.4
HDR: 10
Video Bandwidth: 18Gbps
Audio: LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+,
          Dolby TrueHD, DTS-HDMaster Audio, Dolby Atmos, DTS:X
Colour Depth: 10-bit
Power Consumption: 200mA (Max)
A/V Switcher or Converter

Switcher/Converter Type Manual Switcher
Input type HDMI
Input Connection HDMI
Number of inputs 1pc
Output Type HDMI
Output Connection HDMI
Number of Outputs 2pc
Power Requirement External Power Required

Power from Plugpack
PSU Powers Main Product
DC Voltage 5V
DC Max current 1A
Item Connection Barrel Plug
Suitable PSU Included

Video / Image Resolution
HDMI Version 2b
Video Resolution Ultra HD (2160p / 4K x 2K)

Product Dimensions
Depth 100mm
Width 56mm
Height 16mm
Weight 165g

Warranty: 12 Months
