Q4K-R1KIT - RF & IR distribution kit

Where's the price?

This product may be a discontinued item, but more importantly, make sure you are logged in with your trade account!
resi-linx.com is a trade only website. You can sign up and apply for trade membership to get access to pricing and the ability to add to cart. Alternatively, seek out your local resi-linx dealer for purchase enquiries.

What do you get when you combine the industry's most cost-effective HD modulator (now with 4K loop out) with a patented whole-house video distribution module with IR over coax? A cracking deal just for resi-linx trade members!
With this combo deal you can distribute Pay TV around the house and control it from 2 TVs using the industry’s best (patented) IR control.

Pack content


The replacement of the industry's most popular modulator,HD-1603, accepts a 4K signal and will loop-through that same signal, however, modulated signal is still limited to 1080P, due to the limitations with TV tuners.

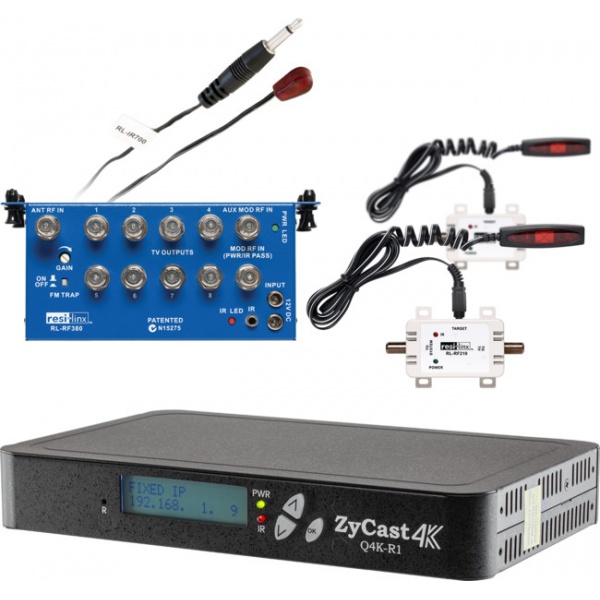

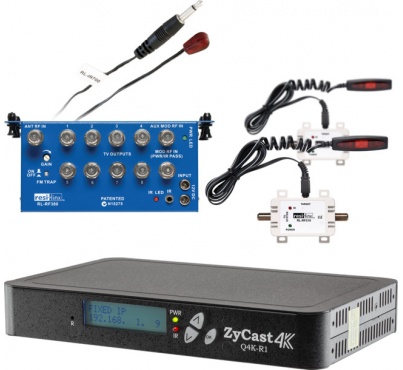

Bundle and save!

  • Q4K-R1 HD modulator with 4K loop-out
  • RL-RF380 3 in-8 out combiner/splitter
  • RL-RF210 - IR flat target x 2
  • RL-IR700 - IR emitter



The first stable 4K modulator! Like the HD1603, the Q4K-R1 supports resi-linx IR targets and emitters. resi-linx are the market leader in both IR and modulation and the only brand to have Foxtel approved product in both fields.

This unit has full menu via LCD display, improved MER resulting in higher quality picture and is configurable for New Zealand. Q4K-R1 allows you to distribute any HD source around your home/business installation over coax cable and control with ease.

  • The most cost effective fully featured 4K HD modulator on the market
  • Single input digital modulator encoding HDI video and stereo audio signals to MPEG-4 only(H.264) DVB-T COFDM TV channels
  • Compatible input resolutions 576i/720P/1080i& 1080P/UHD/4K for high definition picture quality (ensure TV tuner is MPEG4/H.264 and 4K HDCP2.2 compatible)
  • HDMI input-with HDMI loop through for local connectivity
  • IR return path- compatible with resi-linx RL-RF380(video hub) and Rl-RF210(IR target)
  • Superior error rate (MER 39)
  • Full function front LCD display with menu driven configuration
  • New Zealand channel plan selectable
  • 2K/8K carriers
  • Adjustment of settings available via WEB GUI
  • Remote management with a PC
  • Adjustable VHF/UHF output (6-69)
  • 85dB launch with adjustable attenuation
  • Compact design
  • Silent operation-NO FAN NOISE!


3 Input / 8 Output RF Distribution Module

The RL-RF380's patented design is for whole-house video distribution with IR control. The splitters have reverse path IR control, that when combined with other products in the IR range, will allow you to control the AV inputs from other locations. The RL-RF380 must be remotely powered by an IR Modulator when using the IR Control.

  • Active, low loss combiner and splitter with 3 inputs, 8 outputs
  • Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.
  • When combined with gain control on the modulator, allows complete balancing of signals
  • FM trap On/Off switch to filter 88-108MHz signals from transferring through to output ports to eliminate FM interference to TV reception


The resi-linx™ RL-RF210 is a sleek and unobtrusive "Plasma Friendly" Flat IR Target for use in the resi-linx™ range of RF IR Video Distribution system.
The target receives IR commands from remote controls and sends the signal through the Video Hub and Emitters to control the AV device at a remote location.

  • LED Recognition
  • 5V operation


Single head blaster-type IR emitter that repeats IR remote control signals received at an IR target and sent back through the cable to the AV equipment. Compatible with RF IR pass back systems (5V) and HardWired IR systems (12V)

Pack content
